Decision Tree Mechanics with R and SAS

(click to enlarge)






(click to enlarge)


(click to enlarge)


(click to enlarge)

(click to enlarge)

(click to enlarge)
(click to enlarge)
# *------------------------------------------------------------------
# | PROGRAM NAME: R_tree_basic
# | DATE:4/26/11
# | CREATED BY: Matt Bogard
# | PROJECT FILE:P:\R  Code References\Data Mining_R
# *----------------------------------------------------------------
# | PURPOSE: demo of basic decision tree mechanics
# |
# *------------------------------------------------------------------

rm(list=ls()) # get rid of any existing data
ls() # view open data sets

setwd('/Users/wkuuser/Desktop/R Data Sets') # mac
setwd("P:\\R  Code References\\R Data") # windows

library(rpart) # install rpart decision tree library

# *------------------------------------------------------------------
# | get data
# *-----------------------------------------------------------------

dat1 <-  read.csv("basicTree.csv", na.strings=c(".", "NA", "", "?"), encoding="UTF-8")

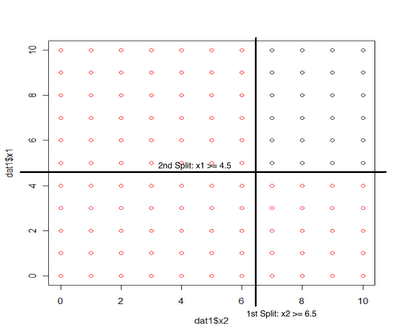

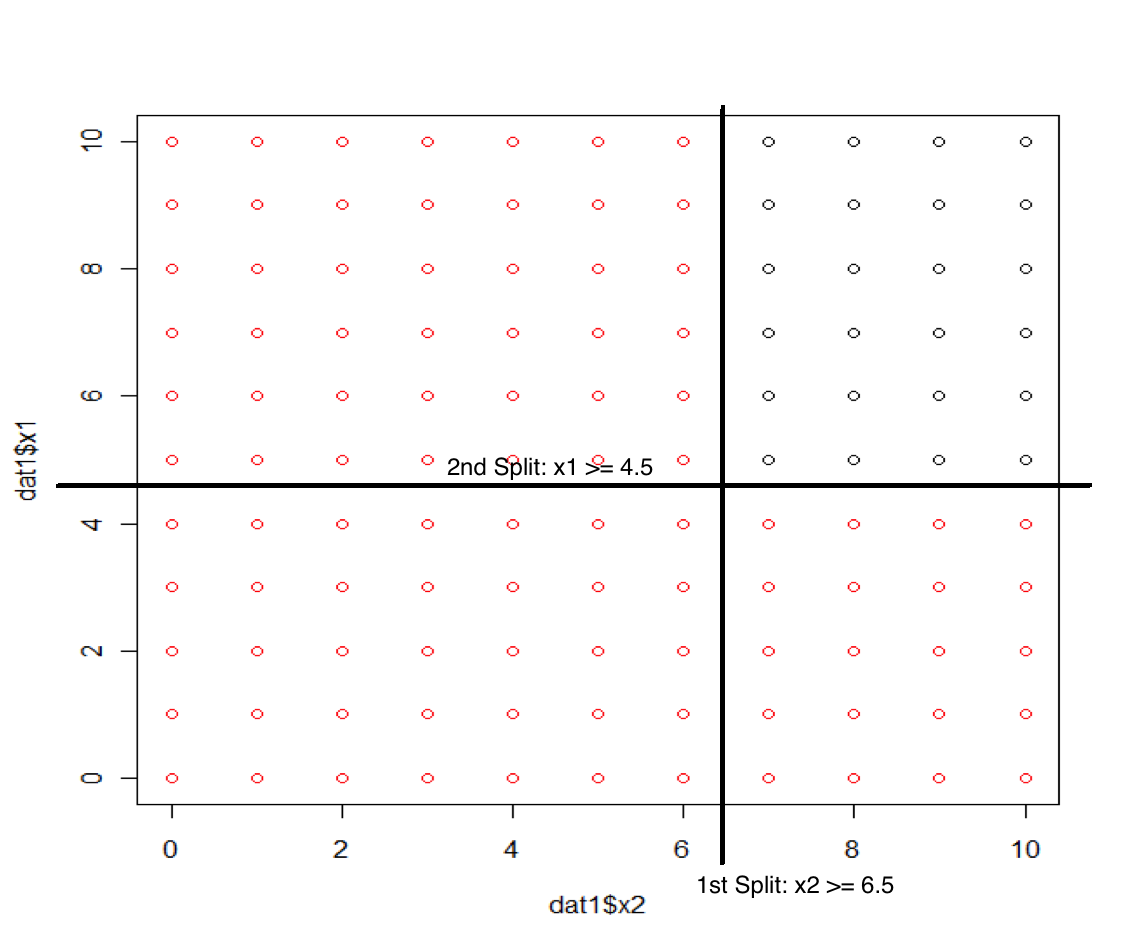

plot( dat1$x2, dat1$x1, col = dat1$class) # plot data space

# fit decision tree

(r <- rpart(class ~ x1 + x2, data = dat1))

plot(r)
text(r)

library(rattle) # data mining package
drawTreeNodes(r) # for more detailed tree plot supported by rattle

# *------------------------------------------------------------------
# |
# |
# | chi square test - 1st split
# |
# |
# *-----------------------------------------------------------------

# create a categorical for the first cutoff for x2 > 6.5

dat1$cutoff <- (ifelse (dat1$x2 >= 6.5, "x2 >=6.5 ", "x2 < 6.5"))

# library(MASS) # required for cross tabulation

tab1 <- table(dat1$cutoff,dat1$class) # cross tabulation
print(tab1)

Xsq <-chisq.test(tab1, correct = FALSE)# chi-squared test for independence
print(Xsq)

print(Xsq$exp) # print expected values

# *------------------------------------------------------------------
# |  chi square test - 1st split - choose an arbitrarily higher and
# |  lower split value and compare to optimal split chosen by tree
# *-----------------------------------------------------------------

# higher x2 split value

dat1$h1 <- (ifelse (dat1$x2  >= 7.5, "x2 >=7.5 ", "x2 < 7.5"))
tab2 <- table(dat1$h1,dat1$class) # cross tabulation
print(tab2)

Xsq <-chisq.test(tab2, correct = FALSE)# chi-squared test for independence
print(Xsq) # chi square value is lower

# lower x2 split value

dat1$l1 <- (ifelse (dat1$x2  >= 5.5, "x2 >=5.5 ", "x2 < 5.5"))
tab3 <- table(dat1$l1,dat1$class) # cross tabulation
print(tab3)

Xsq <-chisq.test(tab3, correct = FALSE)# chi-squared test for independence
print(Xsq) # chi square value is lower

# look at current dat1 data set summary
dim(dat1)
names(dat1)

# *------------------------------------------------------------------
# |
# |
# | chi square test - 2nd split
# |
# |
# *-----------------------------------------------------------------

# *------------------------------------------------------------------
# | get data
# *-----------------------------------------------------------------

# to get the data in the 2nd split we have to first subset or partition the
# data where x2 >= 6.5, hence the partition in the 'recursive partitioning'
# algorithm used by decision trees)

dat2 <- dat1[dat1$x2 >= 6.5,]
dim(dat2) # N = 44 which is correct, recall print(tab1)

# *------------------------------------------------------------------
# | create a categorical for the second cutoff for x1 >= 4.5
# *-----------------------------------------------------------------

dat2$cutoff <- (ifelse (dat2$x1 >= 4.5, "x1 >=4.5 ", "x1 < 4.5"))

# *------------------------------------------------------------------
# | cross tab & chi square test
# *-----------------------------------------------------------------

tab4 <- table(dat2$cutoff,dat2$class) # cross tabulation
print(tab4)

Xsq <-chisq.test(tab4, correct = FALSE)# chi-squared test for independence
print(Xsq) # X-squared = 44, df = 1, p-value = 3.284e-11

# *------------------------------------------------------------------
# |  chi square test - 2nd split - choose an arbitrarily higher and
# |  lower split value and compare to optimal split chosen by tree
# *-----------------------------------------------------------------

# higher x1 split value

dat2$h2 <- (ifelse (dat2$x1 >= 5.5, "x1 >=5.5 ", "x1 < 5.5"))
tab5 <- table(dat2$h2,dat2$class) # cross tabulation
print(tab5)

Xsq <-chisq.test(tab5, correct = FALSE)# chi-squared test for independence
print(Xsq) # X-squared  is lower

# lower x1 split value

dat2$l2 <- (ifelse (dat2$x1 >= 3.5, "x1 >=3.5 ", "x1 < 3.5"))
tab6 <- table(dat2$l2,dat2$class) # cross tabulation
print(tab6)

Xsq <-chisq.test(tab6, correct = FALSE)# chi-squared test for independence
print(Xsq) # X-squared  is lower

# look at data in dat2
dim(dat2)
names(dat2)

# note dat2 inherits the variables h1 and l1 (cutoffs for x2) from dat1, but they are not
# relevant to our analysis in the 2nd split (which focuses on cutoffs for x1)


# *------------------------------------------------------------------
# |
# | export data sets to SAS to repeat analysis using a SAS data set,
# | base SAS, and Enterprise Miner
# |
# |
# *-----------------------------------------------------------------


# export data sets to SAS to repeat analysis using a SAS data set,
# base SAS, and Enterprise Miner

library(foreign)
# export data and SAS code for analyzing dat1
write.foreign(dat1, "dat1.txt", "dat1_read.sas",   package="SAS")
# export data and SAS code for analyzing dat2
write.foreign(dat2, "dat2.txt", "basicTreedat2_read.sas",   package="SAS")
